2EZ13, 2EZ11 - GLASS PASSIVATED JUNCTION SILICON ZENER DIODES

2EZ13 Description

UPM 2EZ11~2EZ39 GLASS PASSIVATED JUNCTION SILICON ZENER DIODES Voltage Range 11-39 Volts Power 2.0mWatts .

2EZ13 Features

* Low profile package
* Built-in strain relief
* Glass passivated iunction
* Low inductance
* Typical ID less than 1.0 above 11V
* Plastic package has Underwriters Laboratory Flammability Classification 94V-O
* High temperature soldering : 260°C /10 seconds at terminals P

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2EZ13, 2EZ11. Please refer to the document for exact specifications by model.

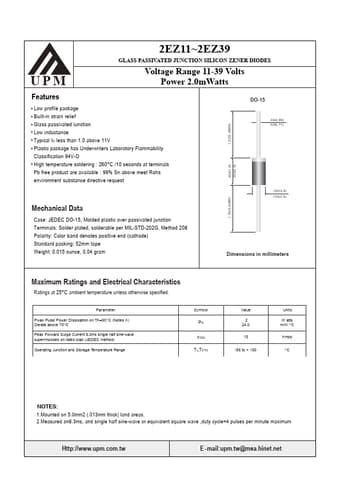

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2EZ13, 2EZ11
Manufacturer
UPM
File Size
1.10 MB
Datasheet
2EZ11-UPM.pdf
Description
GLASS PASSIVATED JUNCTION SILICON ZENER DIODES
Note
This datasheet PDF includes multiple part numbers: 2EZ13, 2EZ11.
Please refer to the document for exact specifications by model.
