2EZ8.2B, 2EZ6.8B - 2W Zener Diodes

TAITRON

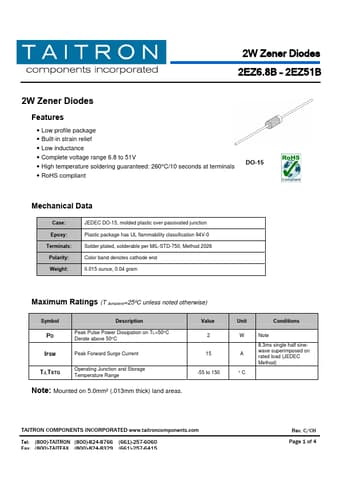

2EZ8.2B Datasheet Preview — This datasheet PDF includes multiple part numbers: 2EZ8.2B, 2EZ6.8B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	2EZ8.2B, 2EZ6.8B
Manufacturer	TAITRON
File Size	179.22 KB
Description	2W Zener Diodes
Datasheet	2EZ6.8B-TAITRON.pdf
Note	This datasheet PDF includes multiple part numbers: 2EZ8.2B, 2EZ6.8B. Please refer to the document for exact specifications by model.

2EZ8.2B Product details

Description

Peak Pulse Power Dissipation on TL=50°C Derate above 50°C Peak Forward Surge Current TJ,TSTG Operating Junction and Storage Temperature Range Note: Mounted on 5.0mm² (.013mm thick) land areas.Value 2 15 -55 to 150 Unit Conditions W Note 8.3ms single half sine- A wave superimposed on rated load (JEDEC Method) °C TAITRON COMPONENTS INCORPORATED ww

Features

Low profile package.
Built-in strain relief.
Low inductance.
Complete voltage range 6.8 to 51V.
High temperature soldering guaranteed: 260°C/10 seconds at terminals.
RoHS compliant DO-15 Mechanical Data Case: Epoxy: Terminals: Polarity: Weight: JEDEC DO-15, molded plastic over passivated junction Plastic package has UL flammability classification 94V-0 Solder plated, solderable per MIL-STD-750, Method 2026 Color band denotes cathode end.
