BAW56 - Three Terminals SMD Switching Diode

Product Overview

TAITRON

Datasheet Details

Part number	BAW56
Manufacturer	TAITRON
File Size	232.55 KB
Description	Three Terminals SMD Switching Diode
Datasheet	BAW56 Datasheet

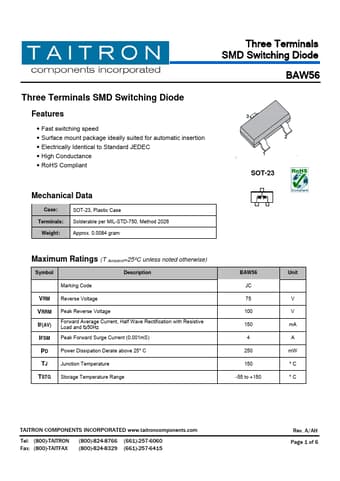

Additional preview pages of the BAW56 datasheet.

Product details

Description

Marking Code VRM Reverse Voltage VRRM IF(AV) IFSM Peak Reverse Voltage Forward Average Current, Half Wave Rectification with Resistive Load and f≥50Hz Peak Forward Surge Current (0.001mS) PD Power Dissipation Derate above 25° C TJ Junction Temperature TSTG Storage Temperature Range BAW56 JC 75 100 150 4 250 150 -55 to +150 Unit V V mA A mW °C °C TAITRON COMPONENTS INCORPORATED www.taitroncomponents.com Tel: (800)-TAITRON (800)-824-8766 (661)-257-6060 Fax: (800)-TAITFAX (800)-824-8329 (

Features

Fast switching speed.
Surface mount package ideally suited for automatic insertion.
Electrically Identical to Standard JEDEC.
High Conductance.
RoHS Compliant SOT-23 Mechanical Data Case: Terminals: Weight: SOT-23, Plastic Case Solderable per MIL-STD-750, Method 2026 Approx. 0.0084 gram Maximum Ratings (T Ambient=25ºC unless noted otherwise) Symbol.
