DF1506M, DF15005M 1.5A Glass Passivated Bridge Rectifier

DF1506M Description

1.5A Glass Passivated Bridge Rectifier DF15005M * DF1514M 1.5A Glass Passivated Bridge Rectifier .

DF1506M Features

* Glass passivated chip junction
* Low leakage
* High surge current capability
* Ideal for printed circuit boards DFM
* Reliable low cost construction utilizing molded plastic technique
* High temperature soldering guaranteed: 260˚C/10 seconds at

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DF1506M, DF15005M. Please refer to the document for exact specifications by model.

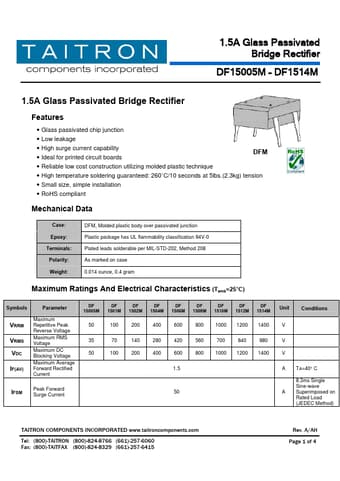

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DF1506M, DF15005M
Manufacturer
TAITRON
File Size
208.16 KB
Datasheet
DF15005M-TAITRON.pdf
Description
1.5A Glass Passivated Bridge Rectifier
Note
This datasheet PDF includes multiple part numbers: DF1506M, DF15005M.
Please refer to the document for exact specifications by model.
