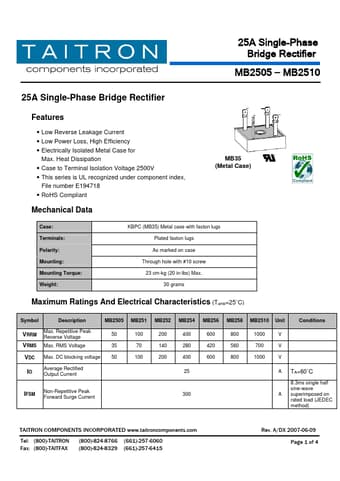

Description
MB2505 MB251 MB252 MB254 MB256 MB258 MB2510 Unit
Conditions
VRRM VRMS
Max.Repetitive Peak Reverse Voltage
Max.RMS Voltage
50
100
200
400
600
800
1000
V
35 70 140 280 420 560 700 V
VDC Max.DC blocking voltage 50
100
200
400
600
800
1000
V
IO
Average Rectified Output Current
25 A TA=60
Features
- Low Reverse Leakage Current.
- Low Power Loss, High Efficiency.
- Electrically Isolated Metal Case for
Max. Heat Dissipation.
- Case to Terminal Isolation Voltage 2500V.
- This series is UL recognized under component index,
File number E194718.
- RoHS Compliant
Mechanical Data
MB35 (Metal Case)
Case: Terminals: Polarity: Mounting: Mounting Torque: Weight:
KBPC (MB35) Metal case with faston lugs Plated faston lugs As marked on case
Through hole with.
