MB256W, MB2505W Datasheet - TAITRON

MB256W 25A Single-Phase Bridge Rectifier

VRRM VRMS Max. Repetitive Peak Reverse Voltage Max. RMS Voltage MB25 05W 50 35 VDC Max. DC blocking voltage 50 IO Average Rectified Output Current IFSM Non-Repetitive Peak Forward Surge Current MB25 1W 100 70 100 MB25 2W 200 140 200 MB25 4W 400 280 400 25 300 MB25 6W 600 420 600 MB25 8W.

MB256W Features

* Low Reverse Leakage Current

* Low Power Loss, High Efficiency

* Electrically Isolated Metal Case for Max. Heat Dissipation

* Case to Terminal Isolation Voltage 2500V

* This series is UL recognized under component index, File number E194718

* RoHS Com

MB2505W-TAITRON.pdf

This datasheet PDF includes multiple part numbers: MB256W, MB2505W. Please refer to the document for exact specifications by model.

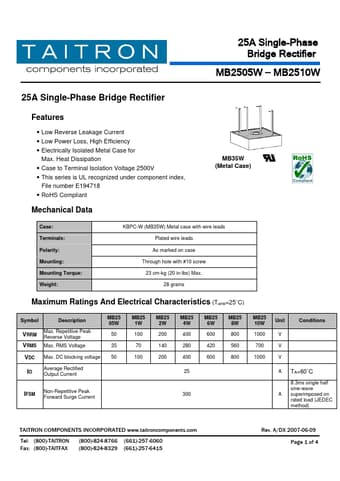

MB256W Datasheet Preview Page 2 MB256W Datasheet Preview Page 3

Datasheet Details

Part number:

MB256W, MB2505W

Manufacturer:

TAITRON

File Size:

139.77 KB

Description:

25a single-phase bridge rectifier.

Note:

This datasheet PDF includes multiple part numbers: MB256W, MB2505W.
Please refer to the document for exact specifications by model.
