MMBD4148-193 Datasheet - TAITRON

MMBD4148-193 - High Performance Switching Diode

Marking Code VRM Reverse Voltage VRRM Peak Reverse Voltage IF(AV) Forward Average Current IFM Peak Forward Current IFSM Peak Forward Surge Current (10mS) PD Power Dissipation TJ Junction Temperature TSTG Storage Temperature Range MMBD4148-193 F3 80 85 100 300 2 150 150 -55 to +150 Unit V .

MMBD4148-193 Features

* Silicon Epitaxial Planar Diode

* Ultra High Speed Switching Application

* High Conductance

* Electrically Identical to Standard JEDEC

* RoHS Compliant SOT-23 Mechanical Data Case: Terminals: Weight: SOT-23, Plastic Case Solderable per MIL-STD-202G, Metho

MMBD4148-193-TAITRON.pdf

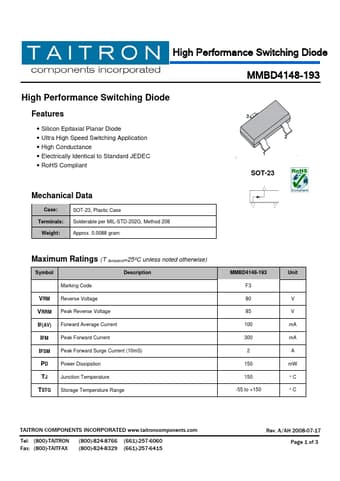

Preview of MMBD4148-193 PDF
MMBD4148-193 Datasheet Preview Page 2 MMBD4148-193 Datasheet Preview Page 3

Datasheet Details

Part number:

MMBD4148-193

Manufacturer:

TAITRON

File Size:

130.38 KB

Description:

High performance switching diode.
