MMBD4148C Surface Mount Switching Diode

MMBD4148C Features

* High Speed 4ns

* Low Rever Leakage Current

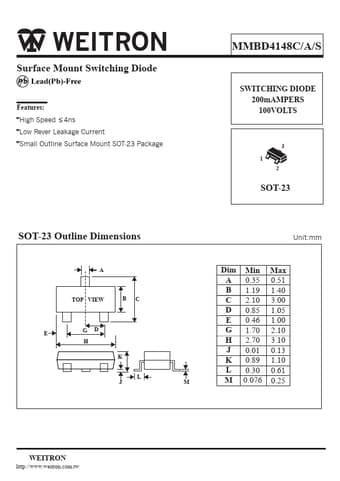

* Small Outline Surface Mount SOT-23 Package MMBD4148C/A/S SWITCHING DIODE 200mAMPERS 100VOLTS 3 1 2 SOT-23 SOT-23 Outline Dimensions A TOP VIEW BC E GD H K L J Unit:mm Dim Min Max A 0.35 0.51 B 1.19 1.40 C 2.10 3.00 D 0.85 1.05 E 0.46 1.

MMBD4148A-WEITRON.pdf

MMBD4148C Datasheet Preview — This datasheet PDF includes multiple part numbers: MMBD4148C, MMBD4148A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MMBD4148C, MMBD4148A

Manufacturer:

WEITRON

File Size:

357.43 KB

Description:

Surface mount switching diode.

Note:

This datasheet PDF includes multiple part numbers: MMBD4148C, MMBD4148A.
Please refer to the document for exact specifications by model.
