RGF3MAB, RGF3AB - 3.0A Sintered Glass Passivated Fast Recovery Rectifier

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RGF3MAB, RGF3AB. Please refer to the document for exact specifications by model.

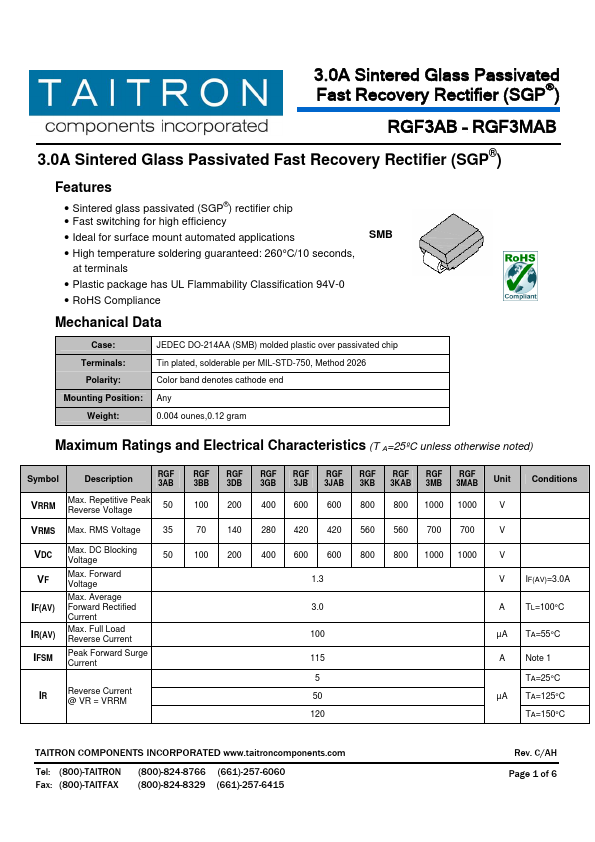

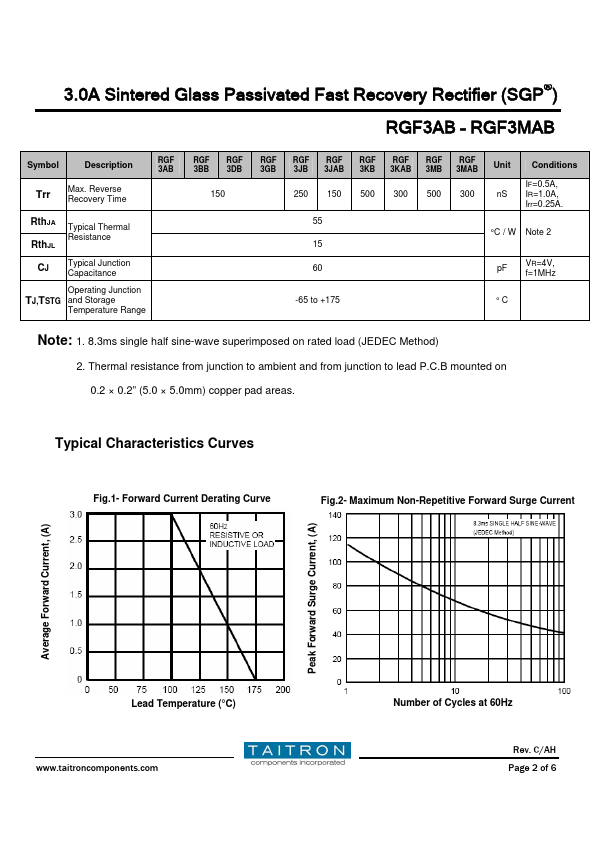

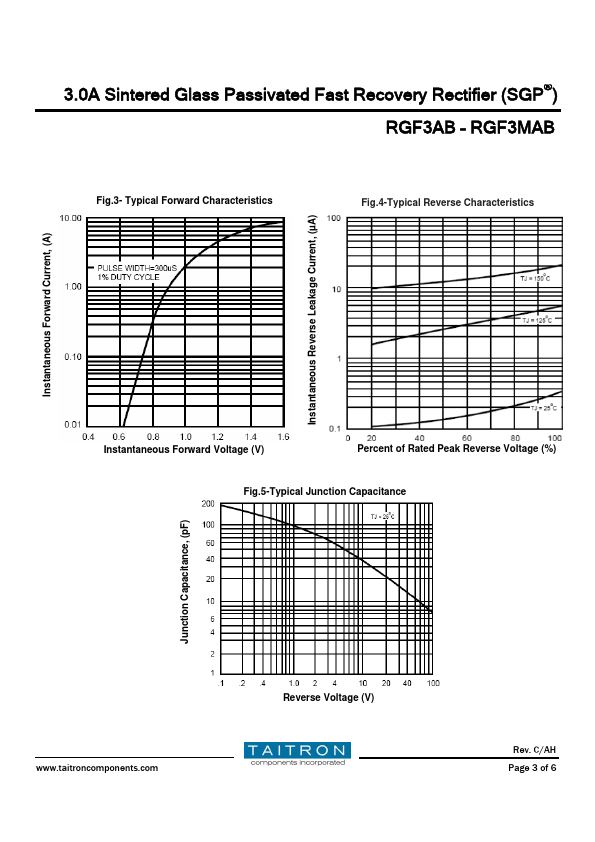

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number RGF3MAB, RGF3AB
Manufacturer TAITRON
File Size 174.96 KB
Description 3.0A Sintered Glass Passivated Fast Recovery Rectifier
Datasheet download datasheet RGF3AB-TAITRON.pdf
Note This datasheet PDF includes multiple part numbers: RGF3MAB, RGF3AB.
Please refer to the document for exact specifications by model.

RGF3MAB Product details

Description

RGF 3AB VRRM Max.Repetitive Peak Reverse Voltage 50 VRMS Max.RMS Voltage 35 VDC Max.DC Blocking Voltage 50 VF IF(AV) IR(AV) Max.Forward Voltage Max.Average Forward Rectified Current Max.Full Load Reverse Current IFSM Peak Forward Surge Current IR Reverse Current @ VR = VRRM RGF 3BB RGF 3DB RGF 3GB RGF 3JB RGF 3JAB RGF 3KB RGF 3KAB RGF 3MB RGF 3MAB Unit 100 200 400 600 600 800 800 1000 1000 V Conditions 70 140 280 420 420 560 560 700 700 V 100 200 400 600 600 8

Features
