S2G - 1.5A Surface Mount Rectifier

TAITRON

📥 Download Datasheet

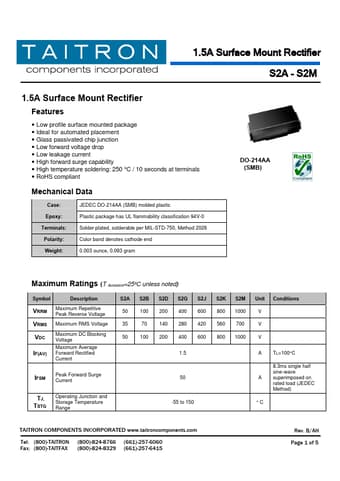

S2G Datasheet Preview — Preview of S2G PDF

Datasheet Details

Part number	S2G
Manufacturer	TAITRON
File Size	175.91 KB
Description	1.5A Surface Mount Rectifier
Datasheet	S2G-TAITRON.pdf

S2G Product details

Description

VRRM VRMS Maximum Repetitive Peak Reverse Voltage Maximum RMS Voltage VDC IF(AV) Maximum DC Blocking Voltage Maximum Average Forward Rectified Current S2A S2B S2D S2G S2J 50 100 200 400 600 35 70 140 280 420 50 100 200 400 600 1.5 IFSM Peak Forward Surge Current 50 TJ, TSTG Oper

Features

Low profile surface mounted package.
Ideal for automated placement.
Glass passivated chip junction.
Low forward voltage drop.
Low leakage current.
High forward surge capability.
High temperature soldering: 250 °C / 10 seconds at terminals.
RoHS compliant Mechanical Data Case: Epoxy: Terminals: Polarity: Weight: JEDEC DO-214AA (SMB) molded plastic Plastic package has UL flammability classification 94V-0 Solder plated, so.
