S5B 5.0A Surface Mount Rectifier

S5B Description

5.0A Surface Mount Rectifier S5A * S5M 5.0A Surface Mount Rectifier .
S5A S5B S5D S5G S5J S5K S5M Unit Conditions VRRM VRMS Maximum Repetitive Peak Reverse Voltage Maximum RMS Voltage 50 35 100 200 400 600 800 1000.

S5B Features

* Low profile surface mounted package
* Ideal for automated placement
* Glass passivated chip junction
* Low forward voltage drop
* Low leakage current
* High forward surge capability
* High temperature soldering: 250 °C / 10 seconds at termin

📥 Download Datasheet

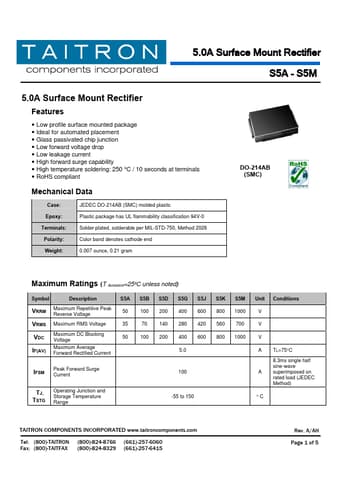

Preview of S5B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S5B
Manufacturer
TAITRON
File Size
177.37 KB
Datasheet
S5B-TAITRON.pdf
Description
5.0A Surface Mount Rectifier
