S5K - 5.0A Surface Mount Rectifier

TAITRON

The S5K by TAITRON is a 5.0A Surface Mount Rectifier. Below is the official datasheet preview.

📥 Download Datasheet

S5K 5.0A Surface Mount Rectifier by TAITRON - Datasheet Preview — Official preview page of the **S5K** 5.0A Surface Mount Rectifier datasheet (TAITRON).

Datasheet Details

Part number	S5K
Manufacturer	TAITRON
File Size	177.38 KB
Description	5.0A Surface Mount Rectifier
Datasheet	S5K-TAITRON.pdf

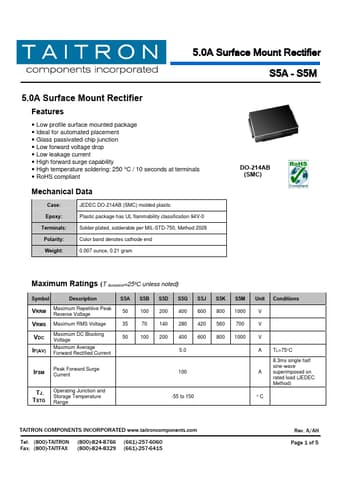

Additional preview pages of the S5K datasheet.

S5K Product details

Description

S5A S5B S5D S5G S5J S5K S5M Unit Conditions VRRM VRMS Maximum Repetitive Peak Reverse Voltage Maximum RMS Voltage 50 35 100 200 400 600 800 1000 70 140 280 420 560 700 V V VDC Maximum DC Blocking Voltage 50 100 200 400 600 800 1000 V IF(AV) Maximum Average Forward Rectified Curr

Features

Low profile surface mounted package.
Ideal for automated placement.
Glass passivated chip junction.
Low forward voltage drop.
Low leakage current.
High forward surge capability.
High temperature soldering: 250 °C / 10 seconds at terminals.
RoHS compliant Mechanical Data Case: Epoxy: Terminals: Polarity: Weight: JEDEC DO-214AB (SMC) molded plastic Plastic package has UL flammability classification 94V-0 Solder plated, so.
