S5M

5.0A Surface Mount Rectifier

TAITRON

S5M Features

* Low profile surface mounted package

* Ideal for automated placement

* Glass passivated chip junction

* Low forward voltage drop

* Low leakage current

* High forward surge capability

* High temperature soldering: 250 °C / 10 seconds at termin

S5M General Description

S5A S5B S5D S5G S5J S5K S5M Unit Conditions VRRM VRMS Maximum Repetitive Peak Reverse Voltage Maximum RMS Voltage 50 35 100 200 400 600 800 1000 70 140 280 420 560 700 V V VDC Maximum DC Blocking Voltage 50 100 200 400 600 800 1000 V IF(AV) Maximum Average Forward Rectified Curr.

S5M Datasheet (177.38 KB)

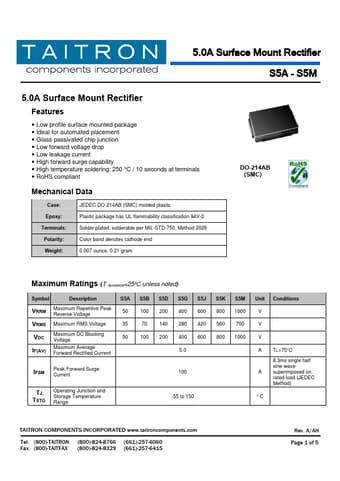

S5M Datasheet Preview — Preview of S5M PDF

Datasheet Details

Part number:

S5M

Manufacturer:

TAITRON

File Size:

177.38 KB

Description:

5.0a surface mount rectifier.
