SBL3050PT - 30A Schottky Barrier Rectifiers

Product Overview

TAITRON

Datasheet Details

Part number	SBL3050PT
Manufacturer	TAITRON
File Size	175.05 KB
Description	30A Schottky Barrier Rectifiers
Datasheet	SBL3050PT Datasheet
Note	This datasheet PDF includes multiple part numbers: SBL3050PT, SBL3030PT. Please refer to the document for exact specifications by model.

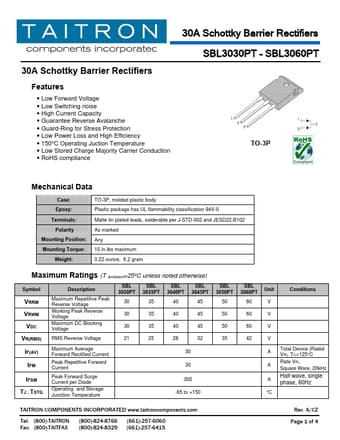

Additional preview pages of the SBL3050PT datasheet.

Product details

Description

Maximum Repetitive Peak Reverse Voltage Working Peak Reverse Voltage Maximum DC Blocking Voltage SBL SBL SBL SBL 3030PT 3035PT 3040PT 3045PT 30 35 40 45 30 35 40 45 30 35 40 45 VR(RMS) RMS Reverse Volta

Features

Low Forward Voltage.
Low Switching noise.
High Current Capacity.
Guarantee Reverse Avalanche.
Guard-Ring for Stress Protection.
Low Power Loss and High Efficiency.
150°C Operating Juction Temperature.
Low Stored Charge Majority Carrier Conduction.
RoHS compliance SBL3030PT.
SBL3060PT TO-3P Mechanical Data Case: Epoxy: Terminals: Polarity Mounting Position: Mounting Torque: Weight: TO-3P, molded plastic.
