TZMC39

500mW Surface Mount Zener Diodes

TZMC39 Features

* Planar Die Construction

* 500mW Power Dissipation

* Very Sharp Reverse Characteristic

* Very High Stability

* Low Reverse Current Level

* Standard Zener Voltage Tolerance is ±5 %

* Ideally Suited for Automated Assembly Processes

* RoHS Compliant MiniMelf Mechanica

TZMC39 General Description

Value Unit Conditions PD Power Dissipation at Ta=25° C 500 mW VF Forward Voltage 1.5 V IF=200mA RthJA Thermal Resistance Junction to Ambient 0.3 K/mW TJ Operating Junction Temperature Range -65 to +175 °C TSTG Storage Temperature Range -65 to +175 °C Note: Valid provided that leads at .

TZMC39 Datasheet (468.94 KB)

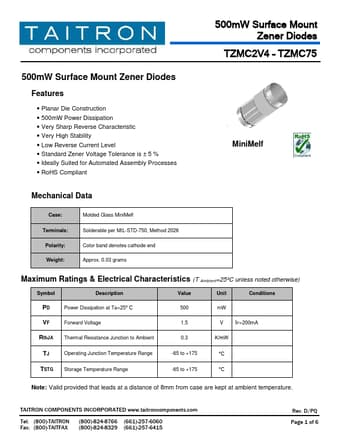

Preview of TZMC39 PDF

Datasheet Details

Part number:

TZMC39

Manufacturer:

TAITRON

File Size:

468.94 KB

Description:

500mw surface mount zener diodes.
