TZMC3V9 Datasheet, Diodes, TAITRON

TZMC3V9 Features

  • Diodes
  • Planar Die Construction
  • 500mW Power Dissipation
  • Very Sharp Reverse Characteristic
  • Very High Stability
  • Low Reverse Current Level

PDF File Details

Part number:

TZMC3V9

Manufacturer:

TAITRON

File Size:

468.94kb

Download:

📄 Datasheet

Description:

500mw surface mount zener diodes. Value Unit Conditions PD Power Dissipation at Ta=25° C 500 mW VF Forward Voltage 1.5 V IF=200mA RthJA Thermal Resistance Junct

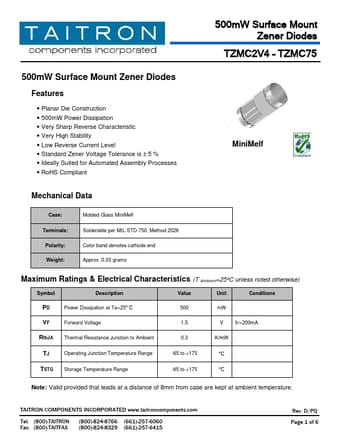

Datasheet Preview: TZMC3V9 📥 Download PDF (468.94kb)
Page 2 of TZMC3V9 Page 3 of TZMC3V9
