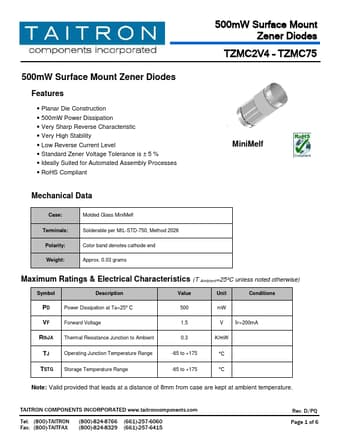

The TZMC3V0 by TAITRON is a 500mW Surface Mount Zener Diodes. Below is the official datasheet preview.
| Part number | TZMC3V0, TZMC2V4 |
|---|---|
| Manufacturer | TAITRON |
| File Size | 468.94 KB |
| Description | 500mW Surface Mount Zener Diodes |
| Datasheet |
 TZMC2V4-TAITRON.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: TZMC3V0, TZMC2V4. Please refer to the document for exact specifications by model. |
|
|
Value Unit Conditions PD Power Dissipation at Ta=25° C 500 mW VF Forward Voltage 1.5 V IF=200mA RthJA Thermal Resistance Junction to Ambient 0.3 K/mW TJ Operating Junction Temperature Range -65 to +175 °C TSTG Storage Temperature Range -65 to +175 °C Note: Valid provided that leads at a distance of 8mm from case are kept at ambient temperature.TAITRON COMPONENTS INCORPORATED www.taitroncomponents.com Tel: (800)-TAITRON (800)-824-8766 (661)-257-6060 Fax: (800)-TAITFAX (800)-824-83
