TSL2560, TSL2561 Datasheet - TAOS

TSL2560 - LIGHT TO DIGITAL CONVERTER

The TSL2560 and TSL2561 are light-to-digital converters that transform light intensity to a digital signal output capable of direct I2C (TSL2561) or SMBus (TSL2560) interface.

Each device combines one broadband photodiode (visible plus infrared) and one infrared-responding photodiode on a single CMO

r r D Approximates Human Eye Response D Programmable Interrupt Function with User-Defined Upper and Lower Threshold Settings D 16-Bit Digital Output with SMBus (TSL2560) at 100 kHz or I2C (TSL2561) Fast-Mode at 400 kHz D Programmable Analog Gain and Integration Time Supporting 1,000,000-to-1 Dynamic Range D Automatically Rejects 50/60-Hz Lighting Ripple D Low Active Power (0.75 mW Typical) with Power Down Mode D RoHS Compliant TSL2560, TSL2561 LIGHT-TO-DIGITAL CONVERTER TAOS059N MARCH

TSL2561-TAOS.pdf

This datasheet PDF includes multiple part numbers: TSL2560, TSL2561. Please refer to the document for exact specifications by model.

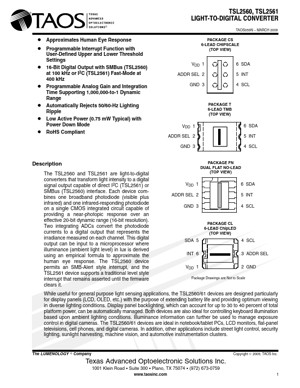

TSL2560 Datasheet Preview Page 2 TSL2560 Datasheet Preview Page 3

Datasheet Details

Part number:

TSL2560, TSL2561

Manufacturer:

TAOS

File Size:

427.61 KB

Description:

Light to digital converter.

Note:

This datasheet PDF includes multiple part numbers: TSL2560, TSL2561.
Please refer to the document for exact specifications by model.
