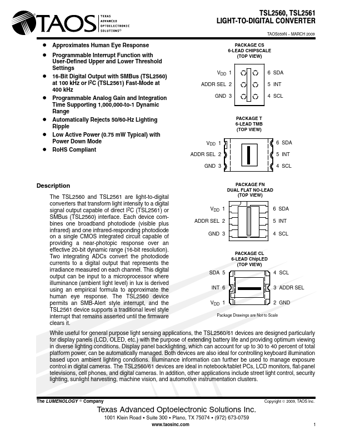

TSL2561 LIGHT TO DIGITAL CONVERTER

The TSL2560 and TSL2561 are light-to-digital converters that transform light intensity to a digital signal output capable of direct I2C (TSL2561) or SMBus (TSL2560) interface. Each device combines one broadband photodiode (visible plus infrared) and one infrared-responding photodiode on a single CMO.

r r D Approximates Human Eye Response D Programmable Interrupt Function with User-Defined Upper and Lower Threshold Settings D 16-Bit Digital Output with SMBus (TSL2560) at 100 kHz or I2C (TSL2561) Fast-Mode at 400 kHz D Programmable Analog Gain and Integration Time Supporting 1,000,000-to-1 Dynamic Range D Automatically Rejects 50/60-Hz Lighting Ripple D Low Active Power (0.75 mW Typical) with Power Down Mode D RoHS Compliant TSL2560, TSL2561 LIGHT-TO-DIGITAL CONVERTER TAOS059N MARCH.
