GK105 Datasheet - TAT ELECTRONICSCO

GK105 - LED

: The GK105 (Slot Optical Switch) is a gallium arsenide infrared emitting diode which is coupled with a silicon photo transistor in a plastic housing.

The packaging system is designed to optimizes the mechanical resolution, coupling efficiency, and insulates ambient light.

The slot in the housing a

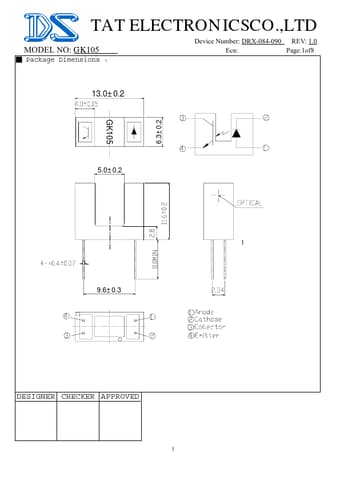

6.3±0.2 GK105 TAT ELECTRONICSCO.,LTD                                                                               GK105                                                Package Dimensions : 13.0±0.2 5.0±0.2 9.6±0.3 DESIGNER CHECKER APPROVED  TAT ELECTRONICSCO.,LTD

GK105 Features

* Wide gap between light emitter and detector(5.0mm) High sensing accuracy PWB mounting type package  Applications: Copier Printer Facsimile Ticket vending machine Opto-electronic switch  TAT ELECTRONICSCO.,LTD

GK105-TATELECTRONICSCO.pdf

Preview of GK105 PDF
GK105 Datasheet Preview Page 2 GK105 Datasheet Preview Page 3

Datasheet Details

Part number:

GK105

Manufacturer:

TAT ELECTRONICSCO

File Size:

736.17 KB

Description:

Led.
