GK152 Datasheet - TAT ELECTRONICSCO

GK152 - Slot Optical Switch

: The GK106 (Slot Optical Switch) is a gallium arsenide infrared emitting diode which is coupled with a silicon photo transistor in a plastic housing.

The packaging system is designed to optimizes the mechanical resolution, coupling efficiency, and insulates ambient light.

The slot in the housing a

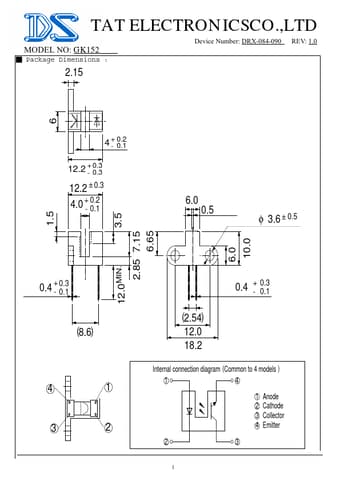

  Package Dimensions :                                                 GK152  TAT ELECTRONICSCO.,LTD 2.15 6 0.2 4+ - 0.1 0.3 12.2 + - 0.3 1.5 3.5 12.2 ± 0.3 0.2 4.0 + - 0.1 6.0 2.85 7.15 6.65 0.5 10.0 φ 3.6 ± 0.5 6.0 http://www.DataSheet4U.com/ 12.0MIN.

0.4 - 0.3 0.1 + 0.4 (2.54) 12.0 18.2 + 0.3 - 0.1 (8.6) 4 1 Internal connection diagram (Common

GK152 Features

* Wide gap between light emitter and detector(4.0mm) High sensing accuracy PWB mounting type package Applications:  Copier Printer Facsimile Ticket vending machine Opto-electronic switch
