ACH4518 (ACH Series) 3-teminal Filters

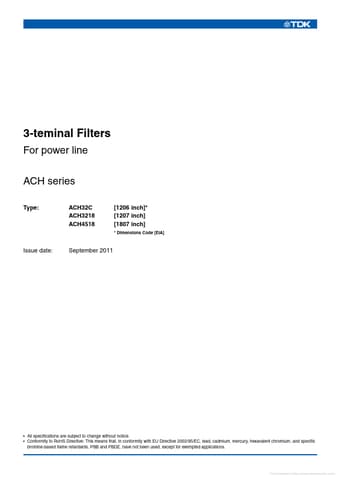

3-teminal Filters For power line ACH series Type: ACH32C ACH3218 ACH4518 [1206 inch] [1207 inch] [1807 inch] Dimensions Code [EIA] Issue date: September 2011 All specifications are subject to change without notice. Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications. F.

ACH4518 Features

* These T-type EMC filters comprise ferrite beads and chip capacitors and are engineered to handle high current levels.

* The series offers even greater attenuation characteristics when used in a stable circuit on the ground.

* The ACH series is ideal for high-density circuit

ACH32C_TDK.pdf

ACH4518 Datasheet Preview — This datasheet PDF includes multiple part numbers: ACH4518, ACH32C. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ACH4518, ACH32C

Manufacturer:

TDK

File Size:

130.41 KB

Description:

(ach series) 3-teminal filters.

Note:

This datasheet PDF includes multiple part numbers: ACH4518, ACH32C.
Please refer to the document for exact specifications by model.
