B59421 - PTC thermistors as limit temperature sensors

B59421 Description

PTC thermistors as limit temperature sensors SMD, EIA case sizes 0402, 0603 and 0805, superior series Series/Type: Date: B59421, B59641, B59721 July.

B59421 Features

* Qualification based on AEC-Q200 rev. D Reflow soldering only Fast and reliable response RoHS-compatible UL approval to UL1434 Certified in accordance with IEC 60738-1 and IEC 60730-1; Annex J15 and J17 Lead-free terminations (tinned) for EIA case sizes 0603 and 0805 Lead-free ceramics for EIA case s

📥 Download Datasheet

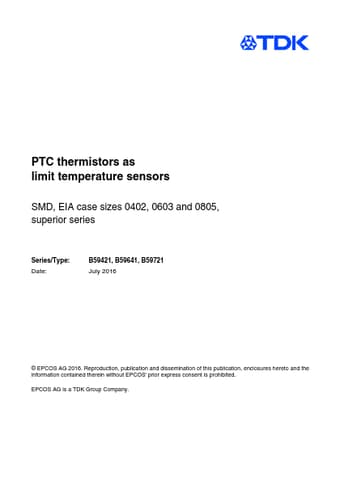

Preview of B59421 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
B59421
Manufacturer
TDK
File Size
878.32 KB
Datasheet
B59421-TDK.pdf
Description
PTC thermistors as limit temperature sensors
