B59451C1130B070, B59770C0120A070 Datasheet - TDK

B59451C1130B070, B59770C0120A070, PTC thermistors

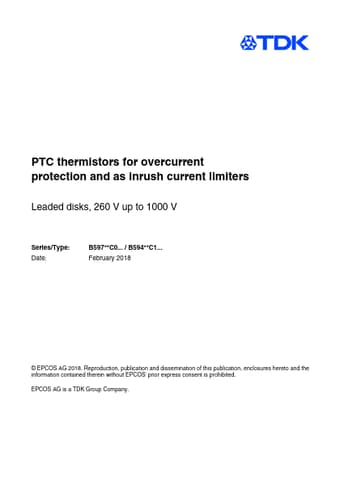

PTC thermistors for overcurrent protection and as inrush current limiters Leaded disks, 260 V up to 1000 V Series/Type: Date: B597 * *C0 / B59.

datasheet Preview Page 1 from Datasheet4u.com

B59770C0120A070-TDK.pdf

B59451C1130B070 Datasheet Preview — This datasheet PDF includes multiple part numbers: B59451C1130B070, B59770C0120A070. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

B59451C1130B070, B59770C0120A070

Manufacturer:

TDK

File Size:

703.09 KB

Description:

PTC thermistors

Note:

This datasheet PDF includes multiple part numbers: B59451C1130B070, B59770C0120A070.
Please refer to the document for exact specifications by model.

Features

* Lead-free terminals Self-protecting in case of malfunction of short-circuit relay or internal short circuit of capacitor Inrush current limiters are not damaged when directly connected to Vmax even without additional current limitation Marking: Type, manufacturer's logo, reference temperature in °C

Applications

* Inrush current limiter for smoothing and DC link capacitors To replace high-power fixed resistors for capacitor charging Overcurrent and short circuit protection Dimensional drawing with coating, C14
* and C7
