B82733F

Power line choke

B82733F Features

* High inductance with low resistance

* Approx. 2% stray inductance for symmetrical interference suppression

* High pulse-handling capability

* Very good inductance/rated current ratio

* Low height (14 mm, B82733F)

* Suitable for wave soldering

* Design complies with IEC/

B82733F Datasheet (567.54 KB)

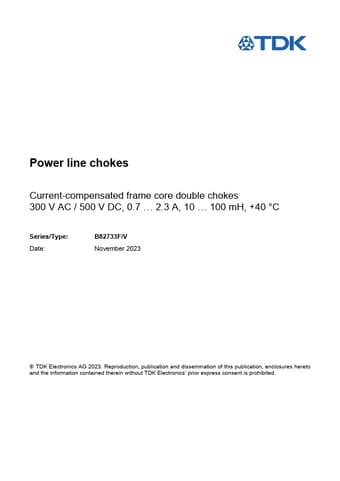

Preview of B82733F PDF

Datasheet Details

Part number:

B82733F

Manufacturer:

TDK

File Size:

567.54 KB

Description:

Power line choke.
Power line chokes Current-compensated frame core double chokes 300 V AC / 500 V DC, 0.7 … 2.3 A, 10 … 100 mH, +40 °C Series/Type: Date: B82733F/V N.
