B82724J8

Power line chokes

B82724J8 Features

* High resonance frequency due to special winding technique

* Approx. 0.5% stray inductance for symmetrical interference suppression

B82724J8 Datasheet (340.52 KB)

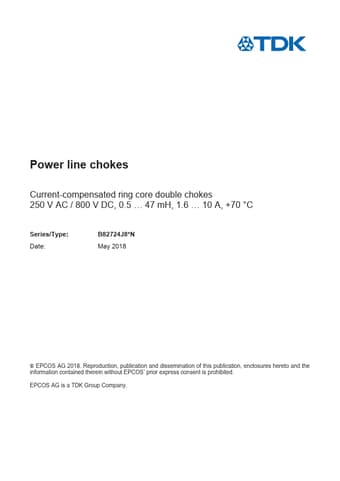

Preview of B82724J8 PDF

Datasheet Details

Part number:

B82724J8

Manufacturer:

TDK

File Size:

340.52 KB

Description:

Power line chokes.
Power line chokes Current-compensated ring core double chokes 250 V AC / 800 V DC, 0.5 … 47 mH, 1.6 … 10 A, +70 °C Series/Type: B82724J8
*N Dat.
