B82721 Datasheet, Chokes, EPCOS

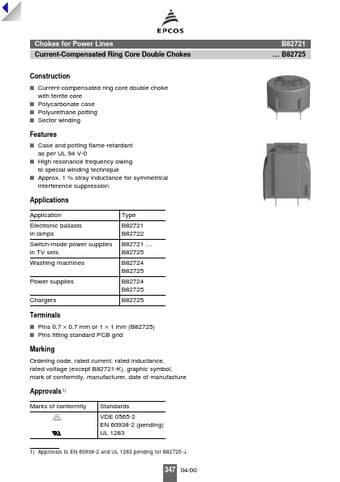

B82721 Features

• Chokes s Case and potting flame-retardant as per UL 94 V-0 s High resonance frequency owing to special winding technique s Approx. 1 % stray inductance for symmetrical interference suppress

PDF File Details

Part number:

B82721

Manufacturer:

EPCOS

File Size:

306.88kb

Download:

📄 Datasheet

Description:

Chokes.

B82721 Application

• Applications Application Electronic ballasts in lamps Switch-mode power supplies in TV sets Washing machines Power supplies Chargers Terminals s Pin
