C1005C0G1H561J, C1005C0G1H0R5B Multilayer Ceramic Chip Capacitors

C1005C0G1H561J Description

C Series General Application Type: C0402 [EIA CC01005] C0603 [EIA CC0201] C1005 [EIA CC0402] C1608 [EIA CC0603] C2012 [EIA CC0805] C3216 [EIA CC1206] .

C1005C0G1H561J Features

* High capacitance has been achieved through precision technologies that enable the use of multiple thinner ceramic dielectric layers.
* A monolithic structure ensures superior mechanical strength and reliability.
* High-accuracy automatic mounting is facilitated through the

C1005C0G1H561J Applications

* Electronics equipment Mobile communications equipment Office automation equipment Automotive electronics Test and measurement equipment Hybrid ICs, etc. Decoupling Smoothing Charge pump Shape & Dimensions L

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: C1005C0G1H561J, C1005C0G1H0R5B. Please refer to the document for exact specifications by model.

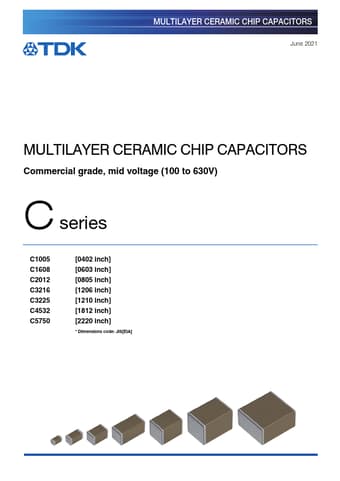

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C1005C0G1H561J, C1005C0G1H0R5B
Manufacturer
TDK
File Size
1.55 MB
Datasheet
C1005C0G1H0R5B_TDK.pdf
Description
Multilayer Ceramic Chip Capacitors
Note
This datasheet PDF includes multiple part numbers: C1005C0G1H561J, C1005C0G1H0R5B.
Please refer to the document for exact specifications by model.
