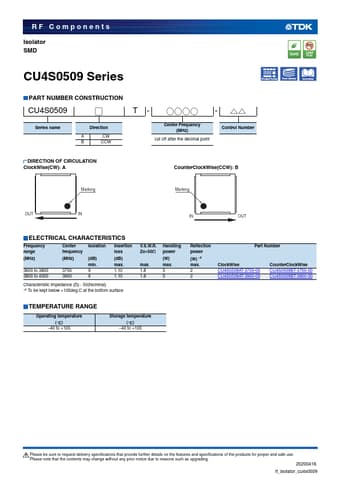

RF Components Isolator SMD CU4S0509 Series PART NUMBER CONSTRUCTION CU4S0509 ˘ T- ˓˓˓˓ - ˚˚ Series name Direction A CW B CCW Center Frequency (MHz) cut off after the decimal point Control Number DIRECTION OF CIRCULATION ClockWise(CW): A CounterClockWise(CCW): B Marking Marking RoHS Pb Lead Free OUT IN IN OUT ELECTRICAL CHARACTERISTICS Frequency range Center Isolation Insertion frequency loss (MHz) 3600 to 3800 3800 to 4000 (MHz) 3700 3900 (dB) min. 9 9 (dB) max.

CU4S0509 Features

* and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20200416 rf_isolator_cu4s0509_en.fm RF Components CU4S0509 Series SHAPES AND DIMENSIONS [Top view] 5.0±0.3 3.4±0.2 (3) (4) 5.0±0.3
