CU40025SCPB-W6J

DISPLAY MODULE

CU40025SCPB-W6J General Description

1.1 Application: Readout of computer, micro-computer, communication terminal and automated instruments. 1.2 Construction: Single board display module consists of 80 character (2 x 40) VFD, a gate array, which includes character generator and RAM, and a DC/DC converter. 1.3 Scope Interface level is.

CU40025SCPB-W6J Datasheet (217.23 KB)

Preview of CU40025SCPB-W6J PDF

Datasheet Details

Part number:

CU40025SCPB-W6J

Manufacturer:

NORITAKE ITRON

File Size:

217.23 KB

Description:

Display module.

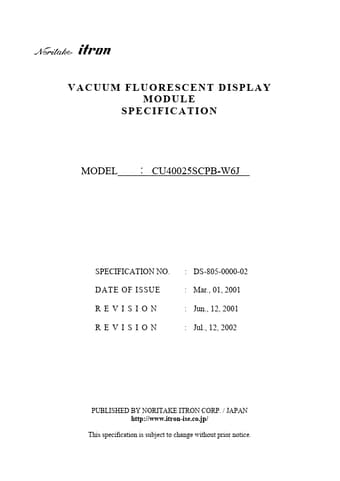

VACUUM FLUORESCENT DISPLAY MODULE SPECIFICATION MODEL ： CU40025SCPB-W6J SPECIFICATION NO. : DS-805-0000-02 DATE OF ISSUE : Mar., 01, 2001 REVISION.
