DPX165950DT-8126A1 Multilayer Diplexer

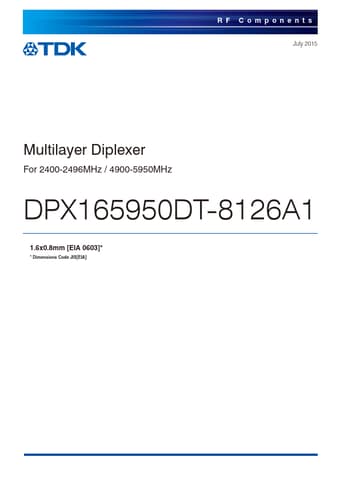

RF Components July 2015 Multilayer Diplexer For 2400-2496MHz / 4900-5950MHz DPX165950DT-8126A1 1.6x0.8mm [EIA 0603] Dimensions Code JIS[EIA] RF Components Multilayer Diplexer For 2400-2496MHz / 4900-5950MHz DPX165950DT-8126A1 SHAPES AND DIMENSIONS [Top view] 1.60±0.15 (6) (5) (4) 0.60±0.10 0.15±0.10 0.80±0.15 (1) (2) (3) Marking [Bottom view] 0.55±0.10 0.25±0.10 0.30±0.10 0.10±0.10 Terminal functions 1 GND 2 Common 3 GND 4 Low-band 5 GND 6 High-band Dimensions in mm Conform.

DPX165950DT-8126A1 Datasheet (89.28 KB)
