DPX165950DT-8130A1 Datasheet - TDK

DPX165950DT-8130A1 - Multilayer Diplexer

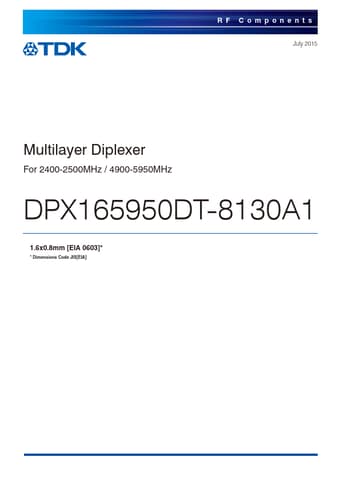

RF Components July 2015 Multilayer Diplexer For 2400-2500MHz / 4900-5950MHz DPX165950DT-8130A1 1.6x0.8mm [EIA 0603] Dimensions Code JIS[EIA] RF Components Multilayer Diplexer For 2400-2500MHz / 4900-5950MHz DPX165950DT-8130A1 SHAPES AND DIMENSIONS [Top view] 1.60±0.10 (6) (5) (4) 0.40max. 0.80±0.15 (1) (2) (3) Marking 0.225±0.05 0.22±0.05 [Bottom view] 0.22±0.05 (1) (2) (6) (5) (3) (4) 0.35±0.05 Terminal functions 1 GND 2 Common 3 GND 4 Low-band 5 GND 6 High-band Dim.

DPX165950DT-8130A1-TDK.pdf

DPX165950DT-8130A1 Datasheet Preview — Preview of DPX165950DT-8130A1 PDF

DPX165950DT-8130A1 Datasheet Preview Page 2

DPX165950DT-8130A1 Datasheet Preview Page 3

Datasheet Details

Part number:

DPX165950DT-8130A1

Manufacturer:

TDK

File Size:

77.03 KB

Description:

Multilayer diplexer.
