IAM-20680

The IAM-20680 is High Performance Automotive 6-Axis MotionTracking designed by TDK.

Product Overview

TDK

IAM-20680 High Performance Automotive 6-Axis MotionTracking by TDK - Datasheet Preview — Datasheet preview – IAM-20680

Datasheet Details

Part number	IAM-20680
Manufacturer	TDK
File Size	673.93 KB
Description	High Performance Automotive 6-Axis MotionTracking
Datasheet	IAM-20680-TDK.pdf

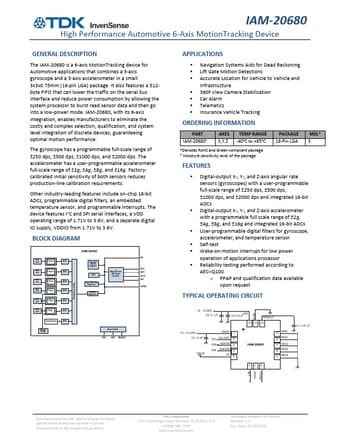

Additional preview pages of the IAM-20680 datasheet.

Product details

Description

The IAM-20680 is a 6-axis MotionTracking device for Automotive applications that combines a 3-axis gyroscope and a 3-axis accelerometer in a small 3x3x0.75mm (16-pin LGA) package.

Features

a 512byte FIFO that can lower the traffic on the serial bus interface and reduce power consumption by allowing the system processor to burst read sensor data and then go into a low-power mode. IAM-20680, with its 6-axis integration, enables manufacturers to eliminate the costly and complex selection, qualification, and system level integration of discrete devices, guaranteeing optimal motion performance. The gyroscope has a programmable full-scale range of ±250 dps, ±500 dps, ±1000 dps, and ±200.
