IAM-20680HP

The IAM-20680HP is High Performance Automotive 6-Axis MotionTracking designed by TDK.

Product Overview

TDK

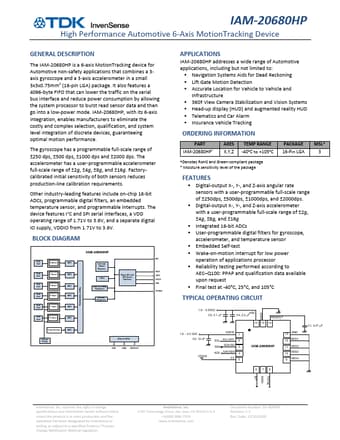

IAM-20680HP High Performance Automotive 6-Axis MotionTracking by TDK - Datasheet Preview — Datasheet preview – IAM-20680HP

Datasheet Details

Part number	IAM-20680HP
Manufacturer	TDK
File Size	1.38 MB
Description	High Performance Automotive 6-Axis MotionTracking
Datasheet	IAM-20680HP-TDK.pdf
Additional preview pages of the IAM-20680HP datasheet.

Product details

Description

The IAM-20680HP is a 6-axis MotionTracking device for Automotive non-safety applications that combines a 3axis gyroscope and a 3-axis accelerometer in a small 3x3x0.75mm3 (16-pin LGA) package.

Features

a 4096-byte FIFO that can lower the traffic on the serial bus interface and reduce power consumption by allowing the system processor to burst read sensor data and then go into a low-power mode. IAM-20680HP, with its 6-axis integration, enables manufacturers to eliminate the costly and complex selection, qualification, and system level integration of discrete devices, guaranteeing optimal motion performance. The gyroscope has a programmable full-scale range of ±250 dps, ±500 dps, ±1000 dps and ±.
