ICM-20648 - 6-Axis MEMS MotionTracking Device

ICM-20648 Description

ICM-20648 6-Axis MEMS MotionTracking™ Device with Enhanced EIS Support and Sensor Fusion Processing GENERAL .
The ICM-20648 is a 6-axis MotionTracking device that is ideally suited for Smartphones, Tablets, Wearable Sensors, and general IoT applications.

ICM-20648 Features

* an operating voltage range down to 1.71V. Communication ports include I2C and high speed SPI at 7 MHz. ORDERING INFORMATION PART TEMP RANGE ICM-20648†
* 40°C to +85°C †Denotes RoHS and Green-Compliant Package PACKAGE 24-Pin QFN TYPICAL OPERATING CIRCUIT nCS SCLK SDI SDA / SDI 24 SCL

ICM-20648 Applications

* 3-axis gyroscope, 3-axis accelerometer, and a Digital Motion Processor™ (DMPTM) in a 3x3x0.9mm (24-pin QFN) package
* Step Count, Activity Classifier, and B2S (Bring-to-See) Gesture tuned for Wrist Worn Wearable Applications
* DMP offloads computation of motion processing

📥 Download Datasheet

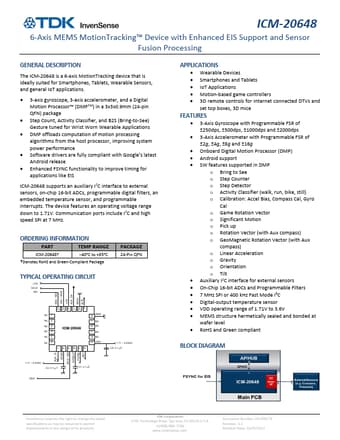

Preview of ICM-20648 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ICM-20648
Manufacturer
TDK
File Size
883.20 KB
Datasheet
ICM-20648-TDK.pdf
Description
6-Axis MEMS MotionTracking Device
