ICS-41351 Datasheet - TDK

ICS-41351 - Multi-Mode Microphone

The ICS-41351 is a multi-mode, low noise digital MEMS microphone in a small package.

The ICS-41351 consists of a MEMS microphone element and an impedance converter amplifier followed by a fourth-order Σ-Δ modulator.

The digital interface allows the pulse density modulated (PDM) output of two microph

ICS-41351 Features

* SPEC Sensitivity SNR Current AOP Clock LOW-POWER MODE

* 26 dB FS ±1 dB 65 dBA 230 µA 120 dB SPL 768 kHz STANDARD MODE

* 26 dB FS ±1 dB 65 dBA 600 µA 120 dB SPL 2.4 MHz HIGH PERFORMANCE MODE -35.5 dB FS ±1 dB 63 dBA 580 µA 129.5 dB SPL 3.072 MHz

* 3.5 × 2.65 × 0.98 mm surfa

ICS-41351-TDK.pdf

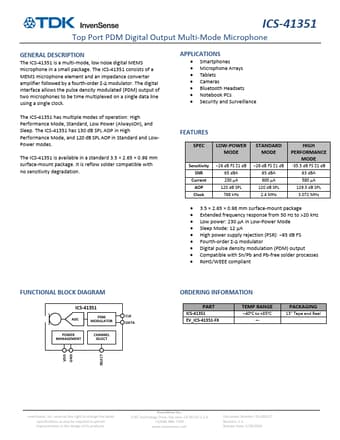

Preview of ICS-41351 PDF
ICS-41351 Datasheet Preview Page 2 ICS-41351 Datasheet Preview Page 3

Datasheet Details

Part number:

ICS-41351

Manufacturer:

TDK

File Size:

571.89 KB

Description:

Multi-mode microphone.
