ICS-41350 - Bottom Port PDM Low-Power Multi-Mode Microphone

ICS-41350 Description

ICS‐41350 Bottom Port PDM Low‐Power Multi‐Mode Microphone With High AOP Mode GENERAL .
The ICS‐41350 is a low‐power, low‐noise digital MEMS microphone in a small package.

ICS-41350 Features

* SPEC Sensitivity SNR Current AOP Clock LOW‐POWER MODE
* 26 dB FS ±1 dB 63 dBA 185 µA 120 dB SPL 400
* 800 kHz STANDARD MODE
* 26 dB FS ±1 dB 64 dBA 430 µA 120 dB SPL 1.0
* 3.3 MHz HIGH PERFORMANCE MODE
* 32 dB FS ±1 dB 64 dBA 650 µA 126 dB SPL 4.1
* 4.

ICS-41350 Applications

* in High Performance Mode. It has an extended ultrasonic response up to 40 kHz with high SNR. The ICS‐41350 is available in a small 3.5 × 2.65 × 0.98 mm surface‐mount package. It is reflow solder compatible with no sensitivity degradation. APPLICATIONS
* Smartphones
* Microphone Arrays

📥 Download Datasheet

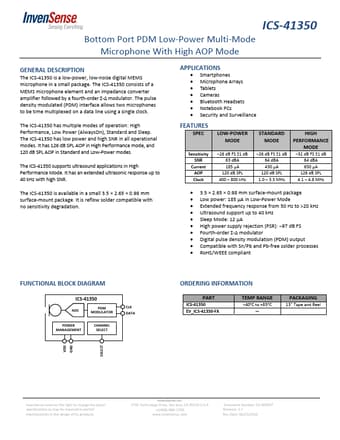

Preview of ICS-41350 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ICS-41350
Manufacturer
InvenSense
File Size
341.92 KB
Datasheet
ICS-41350-InvenSense.pdf
Description
Bottom Port PDM Low-Power Multi-Mode Microphone
