ICU-30201 - Ultra Long-Range Ultrasonic Time-of-Flight Range Sensor

TDK

ICU-30201 Datasheet Preview — Preview of ICU-30201 PDF

Datasheet Details

Part number	ICU-30201
Manufacturer	TDK
File Size	1.34 MB
Description	Ultra Long-Range Ultrasonic Time-of-Flight Range Sensor
Datasheet	ICU-30201-TDK.pdf

ICU-30201 Product details

Description

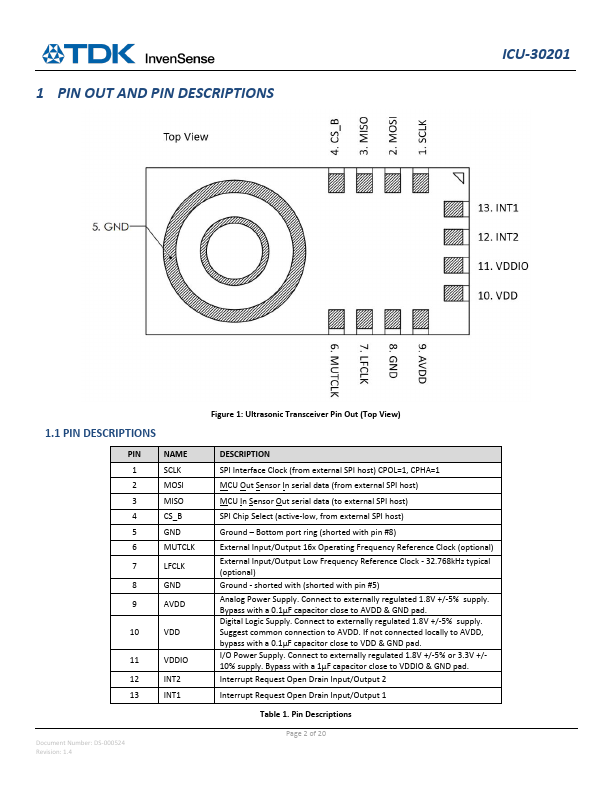

ICU-30201 1.1 PIN DESCRIPTIONS PIN NAME 1 SCLK 2 MOSI 3 MISO 4 CS_B 5 GND 6 MUTCLK 7 LFCLK 8 GND 9 AVDD 10 VDD 11 VDDIO 12 INT2 13 INT1 Document Number: DS-000524 Revision: 1.4 Figure 1: Ultrasonic Transceiver Pin Out (Top View) DESCRIPTION SPI Interface Clock (from external SPI host) CPOL=1, CPHA=1 MCU Out Sensor In serial data (from external SPI host) MCU In Sensor Out serial data (to external SPI host) SPI Chip Select (active-low, from external SPI host) Ground

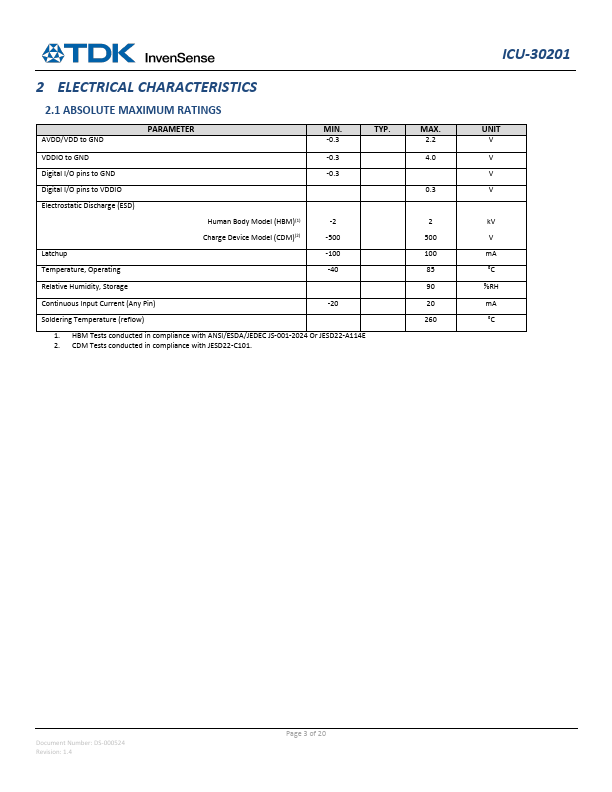

Features

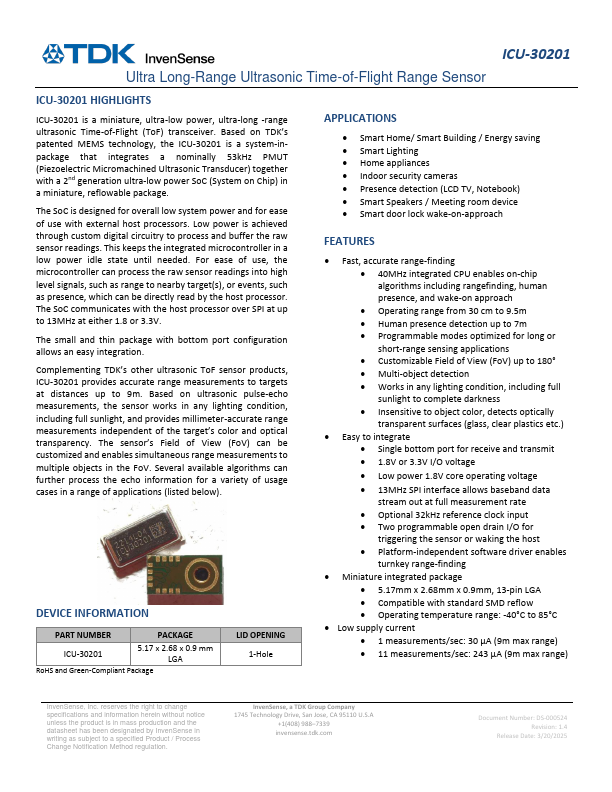

Fast, accurate range-finding.
40MHz integrated CPU enables on-chip algorithms including rangefinding, human presence, and wake-on approach.
Operating range from 30 cm to 9.5m.
Human presence detection up to 7m.
Programmable modes optimized for long or short-range sensing.
