SRW2220EM - General Transformers

Product Overview

TDK

Part number	SRW2220EM
Manufacturer	TDK
File Size	651.70 KB
Description	General Transformers
Datasheet	SRW2220EM Datasheet
Note	This datasheet PDF includes multiple part numbers: SRW2220EM, SRW. Please refer to the document for exact specifications by model.

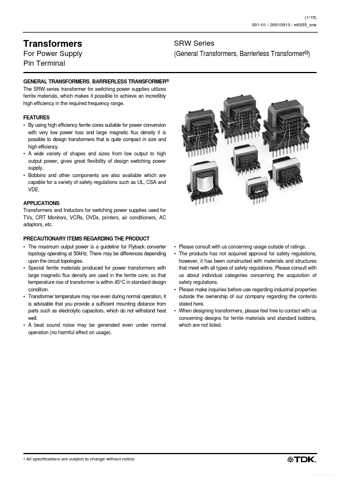

Additional preview pages of the SRW2220EM datasheet.

By using high efficiency ferrite cores suitable for power conversion with very low power loss and large magnetic flux density it is possible to design transformers that is quite compact in size and high efficiency.
A wide variety of shapes and sizes from low output to high output power, gives great flexibility of design switching power supply.
Bobbins and other components are also available which are capable for a variety of safety regulations such as UL, CSA and VD.
