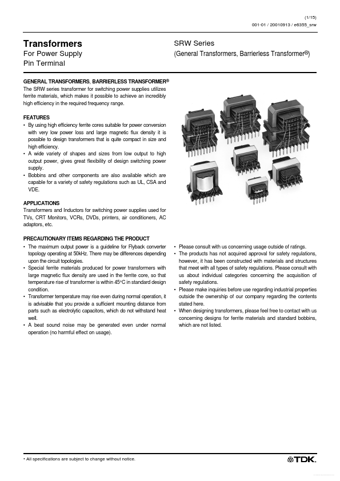

(1/15) 001-01 / 20010913 / e6355_srw.fm Transformers For Power Supply Pin Terminal GENERAL TRANSFORMERS, BARRIERLESS TRANSFORMER® The SRW series tran.

SRW_TDK.pdf

SRW2820ED-1 Datasheet Preview — This datasheet PDF includes multiple part numbers: SRW2820ED-1, SRW. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SRW2820ED-1, SRW

Manufacturer:

TDK

File Size:

651.70 KB

Description:

General Transformers

Note:

This datasheet PDF includes multiple part numbers: SRW2820ED-1, SRW.
Please refer to the document for exact specifications by model.

Features

* By using high efficiency ferrite cores suitable for power conversion with very low power loss and large magnetic flux density it is possible to design transformers that is quite compact in size and high efficiency.
* A wide variety of shapes and sizes from low output to high output

Applications

* Transformers and Inductors for switching power supplies used for TVs, CRT Monitors, VCRs, DVDs, printers, air conditioners, AC adaptors, etc. PRECAUTIONARY ITEMS REGARDING THE PRODUCT
* The maximum output power is a guideline for Flyback converter topology operating at 50kHz. There may be di
