IM06PGR Datasheet - TE

IM06PGR Signal Relays

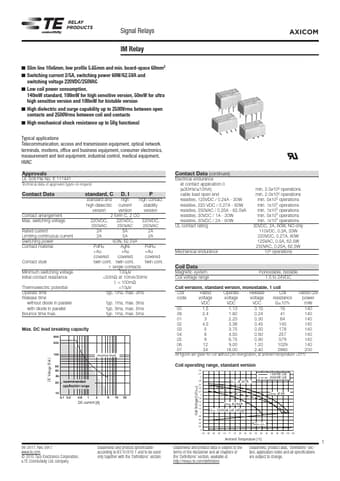

Signal Relays IM Relay AXICOM n Slim line 10x6mm, low profile 5.65mm and min. board-space 60mm2 n Switching current 2/5A, switching power 60W/62.5VA and switching voltage 220VDC/250VAC n Low coil power consumption, 140mW standard, 100mW for high sensitive version, 50mW for ultra high sensitive version and 100mW for bistable version n High dielectric and surge capability up to 2500Vrms between open contacts and 2500Vrms between coil and contacts n High mechanical shock resistance up to 50g func.

IM06PGR Datasheet (1.39 MB)
