IM43GR, IM40GR Datasheet - TE

IM43GR Signal Relays

Signal Relays IM Relay AXICOM n Slim line 10x6mm, low profile 5.65mm and min. board-space 60mm2 n Switching current 2/5A, switching power 60W/62.5VA and switching voltage 220VDC/250VAC n Low coil power consumption, 140mW standard, 100mW for high sensitive version, 50mW for ultra high sensitive version and 100mW for bistable version n High dielectric and surge capability up to 2500Vrms between open contacts and 2500Vrms between coil and contacts n High mechanical shock resistance up to 50g func.

IM40GR-TE.pdf

This datasheet PDF includes multiple part numbers: IM43GR, IM40GR. Please refer to the document for exact specifications by model.

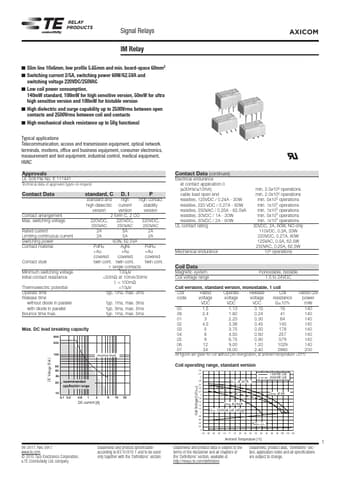

IM43GR Datasheet Preview Page 2 IM43GR Datasheet Preview Page 3

Datasheet Details

Part number:

IM43GR, IM40GR

Manufacturer:

TE

File Size:

1.39 MB

Description:

Signal relays.

Note:

This datasheet PDF includes multiple part numbers: IM43GR, IM40GR.
Please refer to the document for exact specifications by model.
