PE515005, PE514012 Datasheet - TE

PE515005 General Purpose Relays

General Purpose Relays PCB Relays Miniature PCB Relay PE n 1 pole 5 A, 1 form C (CO) or 6A, 1 form A (NO) contact n Cadmium-free contacts n Sensitive coil 200mW n Ambient temperature 85°C n Low height 10.0mm n Plastic materials according to IEC 60335-1 (domestic appliances) SCHRACK Typical applications Industrial electronics, white goods, measurement and control F0169-C Z Approvals VDE Cert. No. 40011901, UL E214025 Technical data of approved types on request Contact Data Contact arr.

PE514012-TE.pdf

This datasheet PDF includes multiple part numbers: PE515005, PE514012. Please refer to the document for exact specifications by model.

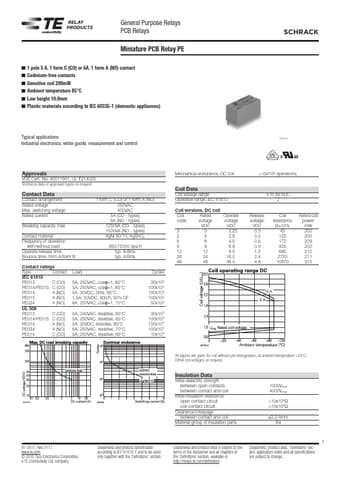

PE515005 Datasheet Preview Page 2

Datasheet Details

Part number:

PE515005, PE514012

Manufacturer:

TE

File Size:

229.72 KB

Description:

General purpose relays.

Note:

This datasheet PDF includes multiple part numbers: PE515005, PE514012.
Please refer to the document for exact specifications by model.
