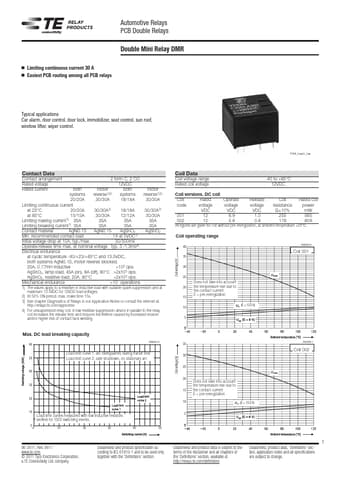

Automotive Relays PCB Double Relays
Double Mini Relay DMR
n Limiting continuous current 30 A n Easiest PCB routing among all PCB relays
Typical applications Car alarm, door control, door lock, immobilizer, seat control, sun roof, window lifter, wiper control.
F084_fcw2c_bw
Contact Data
Contact arrangement
2 form C, 2 CO
Rated voltage
12VDC
Rated current both motor both motor
systems reverse1)2) systems reverse1)2)
20/20A 30/30A 18/18A 30/30A
Limiting continuous current
at 23°C
20/20A 30/30A2) 18/18A 30/30A2)
at 85°C 15/15A 30/30A 12/12A 30/30A
Limiting making current1) 35A 35A 35A 35A
Limiting breaking current1) 35A 35A 35A 35A
Contact material
AgNi0.15 AgNi0.15 AgSnO2 AgSnO2
Min.
V23084-C2002-A403 Datasheet
