Signal Relays

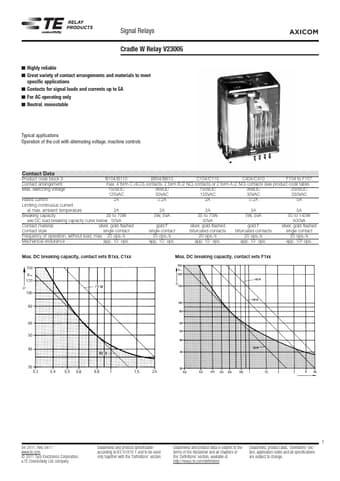

Cradle W Relay V23005
n Highly reliable n Great variety of contact arrangements and materials to meet
specific applications n Contacts for signal loads and currents up to 5A n For AC operating only n Neutral, monostable
Typical applications Operation of the coil with alternating voltage, machine controls
AXICOM
Contact Data
Product code block 3 B104/B110
B604/B610
C104/C110
C404/C410
F104 to F107
Contact arrangement
max. 4 form C (4CO) contacts, 2 form B (2 NC) contacts or 2 form A (2 NO) contacts (see product code table)
Max. switching voltage
150VDC
36VDC
150VDC
36VDC
250VDC
125VAC
30VAC
125VAC
30VAC
250VAC
Rated current
2A
0.2A
2A
0.2A
5A
Limiting continuous current
at max.
