SI120DC50

(SI120DC50 / SI170DC25) DC Solid-State Relay

SI120DC50 Features

* BENEFITS

* Latest generation of High Voltage IGBT Technology

* Innovative isolated driver ensures fast power transistor turn on and off and thus low power transient

* Ultra low output leakage current

* Low control current consumption

* Triggered control input

SI120DC50 General Description

100A, 600 Vdc Solid-State Relay 50A, 1200 Vdc Solid-State Relay 25A, 1700 Vdc Solid-State Relay 1.10 (28) MECHANICAL SPECIFICATION 0.89 (22.8) Ø0.5 0.77 (19.6) Ø4.7 1.10 (28) M5 Part Number Explanation 1.7 (43.2) Series Line Voltage 1 Switch Type2 Output Current

* Amps 4

* 3+ .

SI120DC50 Datasheet (351.77 KB)

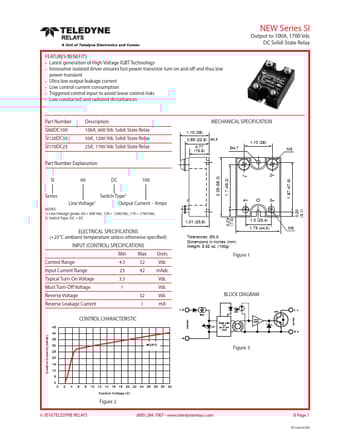

Preview of SI120DC50 PDF

Datasheet Details

Part number:

SI120DC50

Manufacturer:

TELEDYNE

File Size:

351.77 KB

Description:

(si120dc50 / si170dc25) dc solid-state relay.
