TFDS6500E, TFDU6100E Datasheet - TELEFUNKEN

TFDS6500E Transceiver

The TFDU6100E, TFDS6500E, and TFDT6500E are a family of low-power infrared transceiver modules compliant to the IrDA 1.2 standard for fast infrared (FIR) data communication, supporting IrDA speeds up to 4.0 Mbit/s, HP *SIR, Sharp ASK and carrier based remote control modes up to 2 MHz. Integr.

TFDS6500E Features

* Applications D Compliant to IrDA 1.2 (Up to 4 Mbit/s), HP

* SIR, Sharp ASK and TV Remote D Wide Operating Voltage Range (2.7 to 5.5 V ) D Low-Power Consumption (3 mA Supply Current) D Power Shutdown Mode (1 mA Shutdown Current) D Long Range (Up to 2.0 m at 4 Mbit/s in Nominal Design) D High

TFDU6100E-TELEFUNKEN.pdf

This datasheet PDF includes multiple part numbers: TFDS6500E, TFDU6100E. Please refer to the document for exact specifications by model.

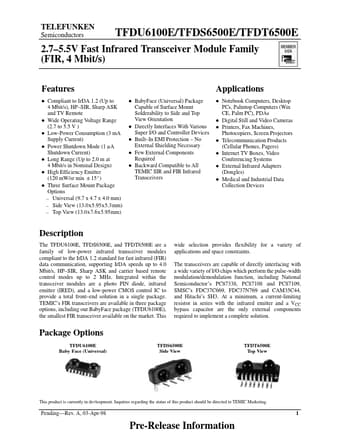

TFDS6500E Datasheet Preview Page 2 TFDS6500E Datasheet Preview Page 3

Datasheet Details

Part number:

TFDS6500E, TFDU6100E

Manufacturer:

TELEFUNKEN

File Size:

547.94 KB

Description:

Transceiver.

Note:

This datasheet PDF includes multiple part numbers: TFDS6500E, TFDU6100E.
Please refer to the document for exact specifications by model.
