TT1205, TT1202 Datasheet - TEMCo

TT1205 Euro Standard Isolation Transformer

Euro Standard Isolation Transformer TT1202-TT1211 KVA: Input Voltage: Output Voltage: Taps: Insulation Class: 15 - 750 575 Delta 415/400/380 Wye ± 5% FC (See Wiring Diagram) 220º C Phase: Frequency: BIL: Coils: Temp Rise: Three-Phase 50/60Hz 10 kV Copper 150º C NEMA 3R Outdoor Enclosure Full 10 Year Warranty European Output Voltages TEMCo Euro-Standard transformers are used to converter standard 3 phase U.S. voltages to standard 3 phase European voltages. This is useful when importing E.

TT1202-TEMCo.pdf

This datasheet PDF includes multiple part numbers: TT1205, TT1202. Please refer to the document for exact specifications by model.

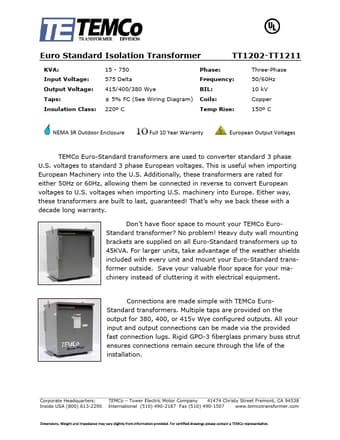

TT1205 Datasheet Preview Page 2 TT1205 Datasheet Preview Page 3

Datasheet Details

Part number:

TT1205, TT1202

Manufacturer:

TEMCo

File Size:

1.60 MB

Description:

Euro standard isolation transformer.

Note:

This datasheet PDF includes multiple part numbers: TT1205, TT1202.
Please refer to the document for exact specifications by model.
