TT1200 - High-CMRR Balanced Input Line Receiver

TT1200 Description

InGeniusâ High-CMRR Balanced Input Line Receiver ICs TT1200 Series .
The TT Semiconductor TT1200-series InGenius balanced line receivers overcome a serious limitation of conventional balanced input stages: poor common.

TT1200 Features

* High CMRR: typ. 90 dB at 60 Hz
* Extremely high common-mode input impedance
* Maintains balance under real-world conditions
* Transformer-like performance in an IC
* Excellent performance
* Wide bandwidth: typ. > 22 MHz
* High slew rate: typ. 12 V/us
* Low distortio

TT1200 Applications

* Balanced Audio Line Receivers
* Instrumentation Amplifiers
* Differential Amplifiers Expanders
* Transformer Front-End Replacements

📥 Download Datasheet

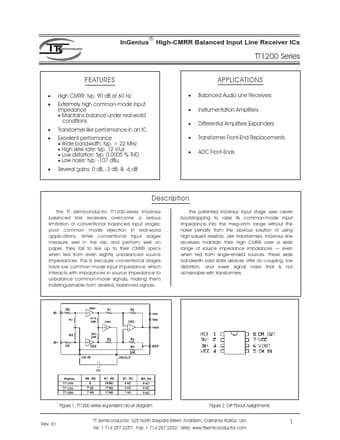

Preview of TT1200 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TT1200
Manufacturer
TT Semiconductor
File Size
679.33 KB
Datasheet
TT1200-TTSemiconductor.pdf
Description
High-CMRR Balanced Input Line Receiver
