TT2041 - Small kVA 3 Phase Isolation Transformer

Download the TT2041 datasheet PDF. This datasheet also covers the TT2039 variant, as both devices belong to the same small kva 3 phase isolation transformer family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • - NEMA 4/4x - Encapsulation - Other voltages/multiple tap - Electrostatic shield Please call us for additional options. Corporate Headquarters: TEMCo.
  • Tower Electric Motor Company 41474 Christy Street Fremont, CA 94538 Inside USA (800) 613-2290 International (510) 490-2187 Fax (510) 490-1507 www. temcoindustrialpower. com Small kVA 3 Phase Isolation Transformer TT2039-TT2045 60 Hz TT2039 TT2040 TT2041 TT2042 TT2043 TT2044 TT2045 350 VA 500 VA 750 VA 1000 VA 1500 VA 2000 VA 3000 VA.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TT2039-TEMCo.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number TT2041
Manufacturer TEMCo
File Size 1.12 MB
Description Small kVA 3 Phase Isolation Transformer
Datasheet download datasheet TT2041 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TT2004A LCD ETC
TT200F Thyristor eupec GmbH
TT2050 NPN Transistor Sanyo Semiconductor Corporation
TT2054 NPN Transistor Sanyo Semiconductor Corporation
TT2062 NPN Transistor Sanyo Semicon Device

Other Datasheets by TEMCo

Part Number Description
TT2040 Small kVA 3 Phase Isolation Transformer
TT2042 Small kVA 3 Phase Isolation Transformer
TT2043 Small kVA 3 Phase Isolation Transformer
TT2044 Small kVA 3 Phase Isolation Transformer
TT2045 Small kVA 3 Phase Isolation Transformer

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

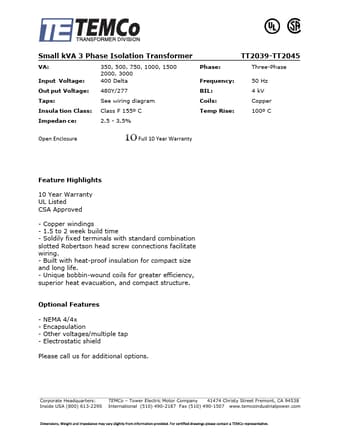

Small kVA 3 Phase Isolation Transformer VA: Input Voltage: 350, 500, 750, 1000, 1500 2000, 3000 400 Delta Out put Voltage: 480Y/277 Taps: See wiring diagram Insula tion Class: Class F 155º C Impedan ce: 2.5 - 3.5% Phase: Frequency: BIL: Coils: Temp Rise: TT2039-TT2045 Three-Phase 50 Hz 4 kV Copper 100º C Open Enclosure Full 10 Year Warranty Feature Highlights 10 Year Warranty UL Listed CSA Approved - Copper windings - 1.5 to 2 week build time - Soldily fixed terminals with standard combination slotted Robertson head screw connections facilitate wiring. - Built with heat-proof insulation for compact size and long life. - Unique bobbin-wound coils for greater efficiency, superior heat evacuation, and compact structure.
